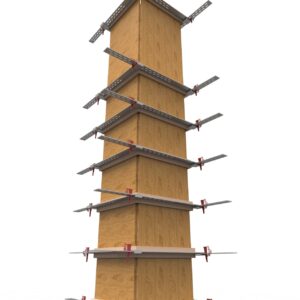

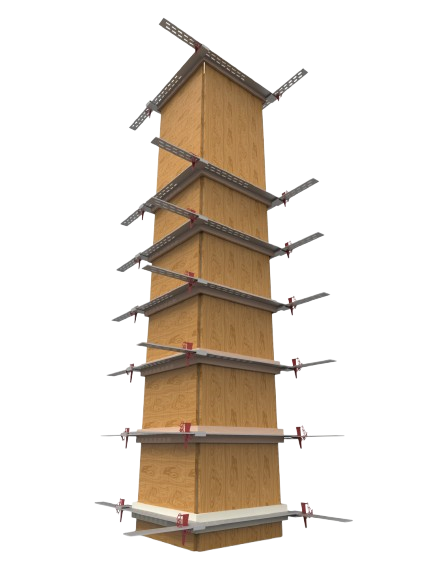

Column Clamp
The Column Clamp is an essential tool for efficient and secure formwork in construction projects.
Designed for durability and ease of use, this clamp ensures precise alignment and stabilization of
concrete columns. Its robust construction and adjustable mechanism accommodate various column
sizes, enhancing productivity and safety on-site. Ideal for both commercial and residential applications,
the Column Clamp is a reliable choice for achieving high-quality, uniform columns.
Application of Column Clamp system, used in various construction settings, including: Commercial Buildings Residential, Projects, Infrastructure Projects
SPECIFICATION
Purpose: Secures formwork panels around a concrete column, preventing movement during pouring to ensure precise column shape and a smooth finish.
Design: Composed of strong, adjustable steel components, the clamp exerts even pressure on formwork panels, maintaining a firm grip.
Adjustability: Adaptable to various column sizes (typically 300 mm to 1000 mm), making it versatile for different column widths and heights in diverse construction projects.
Ease of Use: Designed for quick setup and removal, reducing labor costs with tightening mechanisms like bolts, wedges, or threaded rods.
Components of a Column Clamp:
- Clamp Frame: Main body, often U-shaped, made from high-strength steel to encase formwork panels.
- Tightening Mechanism: Threaded rods, bolts, or wedges secure the clamp around the formwork.
- Adjustable Arms: Some models feature arms that allow fitting various column sizes.
Technical Specifications:
- Material: High-strength steel, often galvanized or powder-coated for corrosion resistance.
- Size: Adjustable for columns from 300 mm x 300 mm to 1000 mm x 1000 mm.
- Weight: Generally between 5 kg and 15 kg, depending on the design and load requirements.
- Load Capacity: Designed for high clamping force to keep formwork panels in place.
- Surface Finish: Typically galvanized or powder-coated to prevent rust in harsh environments.
Advantages:
- Strong Clamping Force: Keeps formwork securely in place during concrete pouring.
- Adjustability: Fits various column sizes, reducing the need for multiple clamp types.
- Easy Installation: Quick setup and adjustment, saving time and costs.
- Durability: Made from high-strength steel for repeated use in multiple projects.
Applications:
- Column Formwork: Ensures alignment and stability of formwork for concrete columns.
- Vertical Structures: Useful for other vertical concrete elements requiring precise alignment.
